Detailed Description

This Facility is intended to convert a resource from one commodity to another.

It also has an optional delay parameter. It can therefore be used quite easily as a storage facility. The CommodConverter class inherits from the Facility class and is dynamically loaded by the Agent class when requested.

Introduction

This Agent was initially developed to support the fco code-to-code comparsion. It's very similar to the "NullFacility" of years past. Its purpose is to convert a commodity from one commodity to another after some period of delay time. This facility is very good for use as a storage facility or fuel fabrication.

Agent Parameters

in_commod is a string naming the commodity that this facility recieves out_commod is a string naming the commodity that in_commod is stocks into process_time is the number of timesteps between receiving and offering in_recipe (optional) describes the incoming resource by recipe out_recipe (optional) describes the outgoing resource by recipe

Optional Parameters

max_inv_size is the maximum capacity of the inventory storage capacity is the maximum processing capacity per timestep

Detailed Behavior

Tick: Nothing really happens on the tick.

Tock: On the tock, any material that has been waiting for long enough (delay time) is stocks and placed in the stocks buffer.

Any brand new inventory that was received in this timestep is placed into the processing queue to begin waiting.

Making Requests: This facility requests all of the in_commod that it can.

Receiving Resources: Anything of the in_commod that is received by this facility goes into the inventory.

Making Offers: Any stocks material in the stocks buffer is offered to the market.

Sending Resources: Matched resources are sent immediately.

Definition at line 68 of file build/CommodConverter/commodconverter.h.

#include <commodconverter.h>

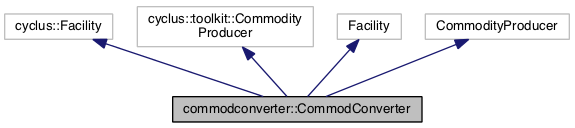

Inheritance diagram for commodconverter::CommodConverter:

[legend]

Public Member Functions
virtual void	AcceptMatlTrades (const std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &responses)

virtual void	AcceptMatlTrades (const std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &responses)

virtual Json::Value	annotations ()

virtual cyclus::Agent *	Clone ()

	CommodConverter (cyclus::Context *ctx)

	CommodConverter (cyclus::Context *ctx)

virtual void	EnterNotify ()

virtual void	EnterNotify ()

virtual std::set < cyclus::BidPortfolio < cyclus::Material >::Ptr >	GetMatlBids (cyclus::CommodMap< cyclus::Material >::type &commod_requests)

virtual std::set < cyclus::BidPortfolio < cyclus::Material >::Ptr >	GetMatlBids (cyclus::CommodMap< cyclus::Material >::type &commod_requests)

virtual std::set < cyclus::RequestPortfolio < cyclus::Material >::Ptr >	GetMatlRequests ()

virtual std::set < cyclus::RequestPortfolio < cyclus::Material >::Ptr >	GetMatlRequests ()

virtual void	GetMatlTrades (const std::vector< cyclus::Trade< cyclus::Material > > &trades, std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &responses)

virtual void	GetMatlTrades (const std::vector< cyclus::Trade< cyclus::Material > > &trades, std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &responses)

virtual void	InfileToDb (cyclus::InfileTree *tree, cyclus::DbInit di)

virtual void	InitFrom (commodconverter::CommodConverter *m)

virtual void	InitFrom (cyclus::QueryableBackend *b)

virtual void	InitInv (cyclus::Inventories &inv)

virtual std::string	schema ()

virtual void	Snapshot (cyclus::DbInit di)

virtual cyclus::Inventories	SnapshotInv ()

virtual std::string	str ()

virtual std::string	str ()

virtual void	Tick ()

virtual void	Tick ()

virtual void	Tock ()

virtual void	Tock ()

Protected Member Functions
void	AddMat_ (cyclus::Material::Ptr mat)

void	AddMat_ (cyclus::Material::Ptr mat)

void	BeginProcessing_ ()

void	BeginProcessing_ ()

void	capacity_ (double c)

double	capacity_ () const

void	capacity_ (double c)

double	capacity_ () const

void	Convert_ ()

void	Convert_ ()

void	cost_ (double c)

double	cost_ () const

void	cost_ (double c)

double	cost_ () const

void	crctx (const cyclus::toolkit::CommodityRecipeContext &crctx)

cyclus::toolkit::CommodityRecipeContext	crctx () const

void	crctx (const cyclus::toolkit::CommodityRecipeContext &crctx)

cyclus::toolkit::CommodityRecipeContext	crctx () const

double	current_capacity () const

double	current_capacity () const

cyclus::BidPortfolio < cyclus::Material >::Ptr	GetBids_ (cyclus::CommodMap< cyclus::Material >::type &commod_requests, std::string commod, cyclus::toolkit::ResourceBuff *buffer)

cyclus::BidPortfolio < cyclus::Material >::Ptr	GetBids_ (cyclus::CommodMap< cyclus::Material >::type &commod_requests, std::string commod, cyclus::toolkit::ResourceBuff *buffer)

void	in_commod_ (std::string c)

std::string	in_commod_ () const

void	in_commod_ (std::string c)

std::string	in_commod_ () const

void	in_recipe_ (std::string c)

std::string	in_recipe_ () const

void	in_recipe_ (std::string c)

std::string	in_recipe_ () const

void	max_inv_size_ (double c)

double	max_inv_size_ () const

void	max_inv_size_ (double c)

double	max_inv_size_ () const

void	out_commod_ (std::string c)

std::string	out_commod_ () const

void	out_commod_ (std::string c)

std::string	out_commod_ () const

void	out_recipe_ (std::string c)

std::string	out_recipe_ () const

void	out_recipe_ (std::string c)

std::string	out_recipe_ () const

void	process_time_ (int t)

int	process_time_ () const

void	process_time_ (int t)

int	process_time_ () const

int	ready ()

int	ready ()

cyclus::Material::Ptr	Request_ ()

cyclus::Material::Ptr	Request_ ()

cyclus::Material::Ptr	TradeResponse_ (double qty, cyclus::toolkit::ResourceBuff *buffer)

cyclus::Material::Ptr	TradeResponse_ (double qty, cyclus::toolkit::ResourceBuff *buffer)

Protected Attributes
double	capacity

double	cost

cyclus::toolkit::CommodityRecipeContext	crctx_

std::string	in_commod

std::string	in_recipe

cyclus::toolkit::ResourceBuff	inventory

double	max_inv_size

std::string	out_commod

std::string	out_recipe

int	process_time

std::map< int, cyclus::toolkit::ResourceBuff >	processing

cyclus::toolkit::ResourceBuff	stocks

Constructor & Destructor Documentation

commodconverter::CommodConverter::CommodConverter ( cyclus::Context * ctx )

Constructor for CommodConverter Class.

Parameters

ctx	the cyclus context for access to simulation-wide parameters

Definition at line 9 of file build/CommodConverter/commodconverter.cc.

commodconverter::CommodConverter::CommodConverter ( cyclus::Context * ctx )

Constructor for CommodConverter Class.

Parameters

ctx	the cyclus context for access to simulation-wide parameters

Member Function Documentation

virtual void commodconverter::CommodConverter::AcceptMatlTrades ( const std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > & responses )

virtual

The CommodConverter place accepted trade Materials in their Inventory.

void commodconverter::CommodConverter::AcceptMatlTrades ( const std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > & responses )

virtual

The CommodConverter place accepted trade Materials in their Inventory.

Definition at line 246 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::AddMat_ ( cyclus::Material::Ptr mat )

protected

adds a material into the incoming commodity inventory

Parameters

mat	the material to add to the incoming inventory.

Exceptions

if	there is trouble with pushing to the inventory buffer.

void commodconverter::CommodConverter::AddMat_ ( cyclus::Material::Ptr mat )

protected

adds a material into the incoming commodity inventory

Parameters

mat	the material to add to the incoming inventory.

Exceptions

if	there is trouble with pushing to the inventory buffer.

Definition at line 303 of file build/CommodConverter/commodconverter.cc.

Json::Value commodconverter::CommodConverter::annotations ( )

virtual

Definition at line 51 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::BeginProcessing_ ( )

protected

Move all unprocessed inventory to processing.

void commodconverter::CommodConverter::BeginProcessing_ ( )

protected

Move all unprocessed inventory to processing.

Definition at line 401 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::capacity_ ( double c )

inlineprotected

the maximum amount processed per timestep

Definition at line 232 of file src/commodconverter.h.

double commodconverter::CommodConverter::capacity_ ( ) const

inlineprotected

Definition at line 233 of file src/commodconverter.h.

void commodconverter::CommodConverter::capacity_ ( double c )

inlineprotected

the maximum amount processed per timestep

Definition at line 238 of file build/CommodConverter/commodconverter.h.

double commodconverter::CommodConverter::capacity_ ( ) const

inlineprotected

Definition at line 239 of file build/CommodConverter/commodconverter.h.

cyclus::Agent * commodconverter::CommodConverter::Clone ( )

virtual

Definition at line 130 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::Convert_ ( )

protected

Convert one ready resource in processing.

void commodconverter::CommodConverter::Convert_ ( )

protected

Convert one ready resource in processing.

Definition at line 415 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::cost_ ( double c )

inlineprotected

the cost per unit out_commod

Definition at line 236 of file src/commodconverter.h.

double commodconverter::CommodConverter::cost_ ( ) const

inlineprotected

Definition at line 237 of file src/commodconverter.h.

void commodconverter::CommodConverter::cost_ ( double c )

inlineprotected

the cost per unit out_commod

Definition at line 242 of file build/CommodConverter/commodconverter.h.

double commodconverter::CommodConverter::cost_ ( ) const

inlineprotected

Definition at line 243 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::crctx ( const cyclus::toolkit::CommodityRecipeContext & crctx )

inlineprotected

this facility's commodity-recipe context

Definition at line 163 of file src/commodconverter.h.

cyclus::toolkit::CommodityRecipeContext commodconverter::CommodConverter::crctx ( ) const

inlineprotected

Definition at line 167 of file src/commodconverter.h.

void commodconverter::CommodConverter::crctx ( const cyclus::toolkit::CommodityRecipeContext & crctx )

inlineprotected

this facility's commodity-recipe context

Definition at line 177 of file build/CommodConverter/commodconverter.h.

cyclus::toolkit::CommodityRecipeContext commodconverter::CommodConverter::crctx ( ) const

inlineprotected

Definition at line 181 of file build/CommodConverter/commodconverter.h.

double commodconverter::CommodConverter::current_capacity ( ) const

inlineprotected

current maximum amount that can be added to processing

Definition at line 256 of file src/commodconverter.h.

double commodconverter::CommodConverter::current_capacity ( ) const

inlineprotected

current maximum amount that can be added to processing

Definition at line 262 of file build/CommodConverter/commodconverter.h.

virtual void commodconverter::CommodConverter::EnterNotify ( )

virtual

void commodconverter::CommodConverter::EnterNotify ( )

virtual

Definition at line 169 of file build/CommodConverter/commodconverter.cc.

cyclus::BidPortfolio<cyclus::Material>::Ptr commodconverter::CommodConverter::GetBids_	(	cyclus::CommodMap< cyclus::Material >::type &	commod_requests,
		std::string	commod,
		cyclus::toolkit::ResourceBuff *	buffer
	)

protected

gathers information about bids

Parameters

commod_requests the materials that have been requested

cyclus::BidPortfolio< cyclus::Material >::Ptr commodconverter::CommodConverter::GetBids_	(	cyclus::CommodMap< cyclus::Material >::type &	commod_requests,
		std::string	commod,
		cyclus::toolkit::ResourceBuff *	buffer
	)

protected

gathers information about bids

Parameters

commod_requests the materials that have been requested

Definition at line 336 of file build/CommodConverter/commodconverter.cc.

virtual std::set<cyclus::BidPortfolio<cyclus::Material>::Ptr> commodconverter::CommodConverter::GetMatlBids ( cyclus::CommodMap< cyclus::Material >::type & commod_requests )

virtual

Responds to each request for this facility's commodity.

If a given request is more than this facility's inventory capacity, it will offer its minimum of its capacities.

std::set< cyclus::BidPortfolio< cyclus::Material >::Ptr > commodconverter::CommodConverter::GetMatlBids ( cyclus::CommodMap< cyclus::Material >::type & commod_requests )

virtual

Responds to each request for this facility's commodity.

If a given request is more than this facility's inventory capacity, it will offer its minimum of its capacities.

Definition at line 258 of file build/CommodConverter/commodconverter.cc.

virtual std::set<cyclus::RequestPortfolio<cyclus::Material>::Ptr> commodconverter::CommodConverter::GetMatlRequests ( )

virtual

The CommodConverter request Materials of its given commodity.

std::set< cyclus::RequestPortfolio< cyclus::Material >::Ptr > commodconverter::CommodConverter::GetMatlRequests ( )

virtual

The CommodConverter request Materials of its given commodity.

Definition at line 221 of file build/CommodConverter/commodconverter.cc.

virtual void commodconverter::CommodConverter::GetMatlTrades	(	const std::vector< cyclus::Trade< cyclus::Material > > &	trades,
		std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &	responses
	)

virtual

respond to each trade with a material of out_commod and out_recipe

Parameters

trades	all trades in which this trader is the supplier
responses	a container to populate with responses to each trade

void commodconverter::CommodConverter::GetMatlTrades	(	const std::vector< cyclus::Trade< cyclus::Material > > &	trades,
		std::vector< std::pair< cyclus::Trade< cyclus::Material >, cyclus::Material::Ptr > > &	responses
	)

virtual

respond to each trade with a material of out_commod and out_recipe

Parameters

trades	all trades in which this trader is the supplier
responses	a container to populate with responses to each trade

Definition at line 278 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::in_commod_ ( std::string c )

inlineprotected

the in commodity

Definition at line 240 of file src/commodconverter.h.

std::string commodconverter::CommodConverter::in_commod_ ( ) const

inlineprotected

Definition at line 241 of file src/commodconverter.h.

void commodconverter::CommodConverter::in_commod_ ( std::string c )

inlineprotected

the in commodity

Definition at line 246 of file build/CommodConverter/commodconverter.h.

std::string commodconverter::CommodConverter::in_commod_ ( ) const

inlineprotected

Definition at line 247 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::in_recipe_ ( std::string c )

inlineprotected

the in recipe

Definition at line 248 of file src/commodconverter.h.

std::string commodconverter::CommodConverter::in_recipe_ ( ) const

inlineprotected

Definition at line 249 of file src/commodconverter.h.

void commodconverter::CommodConverter::in_recipe_ ( std::string c )

inlineprotected

the in recipe

Definition at line 254 of file build/CommodConverter/commodconverter.h.

std::string commodconverter::CommodConverter::in_recipe_ ( ) const

inlineprotected

Definition at line 255 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::InfileToDb	(	cyclus::InfileTree *	tree,
		cyclus::DbInit	di
	)

virtual

Definition at line 95 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::InitFrom ( commodconverter::CommodConverter * m )

virtual

The Prime Directive Generates code that handles all input file reading and restart operations (e.g., reading from the database, instantiating a new object, etc.).

Warning: The Prime Directive must have a space before it! (A fix will be in 2.0 ^TM)

Definition at line 138 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::InitFrom ( cyclus::QueryableBackend * b )

virtual

Definition at line 151 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::InitInv ( cyclus::Inventories & inv )

virtual

Definition at line 85 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::max_inv_size_ ( double c )

inlineprotected

the maximum amount allowed in inventory

Definition at line 228 of file src/commodconverter.h.

double commodconverter::CommodConverter::max_inv_size_ ( ) const

inlineprotected

Definition at line 229 of file src/commodconverter.h.

void commodconverter::CommodConverter::max_inv_size_ ( double c )

inlineprotected

the maximum amount allowed in inventory

Definition at line 234 of file build/CommodConverter/commodconverter.h.

double commodconverter::CommodConverter::max_inv_size_ ( ) const

inlineprotected

Definition at line 235 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::out_commod_ ( std::string c )

inlineprotected

the out commodity

Definition at line 244 of file src/commodconverter.h.

std::string commodconverter::CommodConverter::out_commod_ ( ) const

inlineprotected

Definition at line 245 of file src/commodconverter.h.

void commodconverter::CommodConverter::out_commod_ ( std::string c )

inlineprotected

the out commodity

Definition at line 250 of file build/CommodConverter/commodconverter.h.

std::string commodconverter::CommodConverter::out_commod_ ( ) const

inlineprotected

Definition at line 251 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::out_recipe_ ( std::string c )

inlineprotected

the out recipe

Definition at line 252 of file src/commodconverter.h.

std::string commodconverter::CommodConverter::out_recipe_ ( ) const

inlineprotected

Definition at line 253 of file src/commodconverter.h.

void commodconverter::CommodConverter::out_recipe_ ( std::string c )

inlineprotected

the out recipe

Definition at line 258 of file build/CommodConverter/commodconverter.h.

std::string commodconverter::CommodConverter::out_recipe_ ( ) const

inlineprotected

Definition at line 259 of file build/CommodConverter/commodconverter.h.

void commodconverter::CommodConverter::process_time_ ( int t )

inlineprotected

the processing time required for a full process

Definition at line 224 of file src/commodconverter.h.

int commodconverter::CommodConverter::process_time_ ( ) const

inlineprotected

Definition at line 225 of file src/commodconverter.h.

void commodconverter::CommodConverter::process_time_ ( int t )

inlineprotected

the processing time required for a full process

Definition at line 230 of file build/CommodConverter/commodconverter.h.

int commodconverter::CommodConverter::process_time_ ( ) const

inlineprotected

Definition at line 231 of file build/CommodConverter/commodconverter.h.

int commodconverter::CommodConverter::ready ( )

inlineprotected

returns the time key for ready materials

Definition at line 172 of file src/commodconverter.h.

int commodconverter::CommodConverter::ready ( )

inlineprotected

returns the time key for ready materials

Definition at line 186 of file build/CommodConverter/commodconverter.h.

cyclus::Material::Ptr commodconverter::CommodConverter::Request_ ( )

protected

generates a request for this facility given its current state.

The quantity of the material will be equal to the remaining inventory size.

Returns: a material that this facility will request

cyclus::Material::Ptr commodconverter::CommodConverter::Request_ ( )

protected

generates a request for this facility given its current state.

The quantity of the material will be equal to the remaining inventory size.

Returns: a material that this facility will request

Definition at line 324 of file build/CommodConverter/commodconverter.cc.

std::string commodconverter::CommodConverter::schema ( )

virtual

Definition at line 17 of file build/CommodConverter/commodconverter.cc.

void commodconverter::CommodConverter::Snapshot ( cyclus::DbInit di )

virtual

Definition at line 118 of file build/CommodConverter/commodconverter.cc.

cyclus::Inventories commodconverter::CommodConverter::SnapshotInv ( )

virtual

Definition at line 89 of file build/CommodConverter/commodconverter.cc.

virtual std::string commodconverter::CommodConverter::str ( )

virtual

The Prime Directive Generates code that handles all input file reading and restart operations (e.g., reading from the database, instantiating a new object, etc.).
